上海金泰工程機(jī)械有限公司
45 Luopu Road, Anting, Shanghai 400-820-8326

PRODUCT

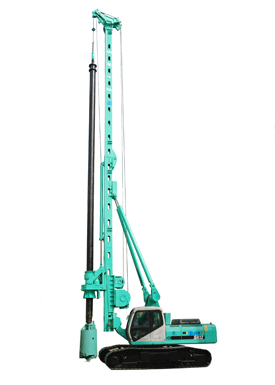

SH30

SH30 is a new type of piling machine with big triangle structure,which combines the new technology and process of the modem hydraulic piling machinery. So,its performance reaches or exceeds the advanced level of the same products in the world,meanwhile, the whole machine with easy operation and high working efficiency is capable of digging deep pit due to its many international brand key accessories. SH30 is widely applied to the construction of high buildings, bridge,water conservancy and so on and especially proper for the complex geological layers containing much water.SH30 is an ideal equipment for all kinds foundation construction.

Type SH30
Drilling tower
Height of tower (mm) 22900
Weight of base machine(without drilling tools)(kg) 75000
Crowd cylinder
Cylinder stroke (mm)  5700
Cylinder pressure force (kN) 250
Cylinder pulling force (kN)  250
Main winch
Single line pull (kN) 250
Rope diameter (mm) 30
Line speed max. (m/min) 65
Auxiliary winch
Single line pull (kN)  75
Rope diameter (mm)  18
Line speed max. (m/min)  45
Drilling parameter
Dimensions(mm)
L1 21456

L2 9059
L3   3359
Drilling diameter(mm)
uncased 2400
cased 1800
Length of case(m)
W/O oscillator  H-0.6

With oscillator H-1.8
